Augmented Reality Project

 This project is from cs6476 computer vision. The main goal is to project images or videos onto a target video with a wall marked by corner templates. Homography transformation is the main theory used in the project. Results are displayed in the following images and videos.

corners located correctly, frames marked as blue lines
markers located in a noisy image
image (UT tower) projected on the wall

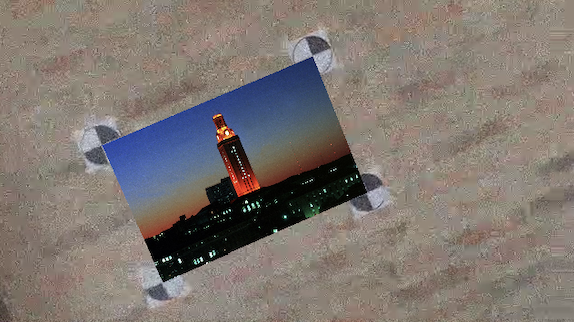

image projected on the wall with noises

image projected on the wall:

Virtual TV on the wall:

(penguin video from BBC)
